Segmented Transfer Plates

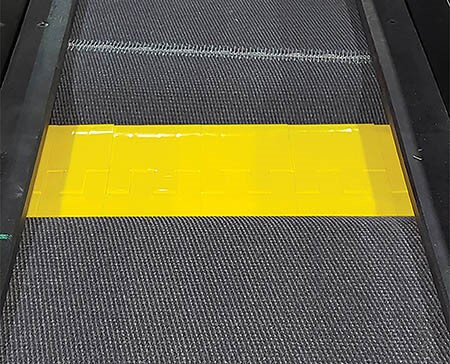

Segmented Transfer Plates from Belt Power can help prevent product loss at the transfer point, preventing potential damage to the product as well as the belt and conveyor structure. Segmented Transfer Plates provide smooth transition from one belt to another, from belt to chute, or from belt to structure.

• Accommodate belts up to 60″ (1500 mm) wide and gaps from 4″ to 10″ (100 mm to 250 mm).
• Narrow-gap option available for smaller pulley-to-pulley gaps from 1.5″ to 3″ (38 mm to 75 mm).

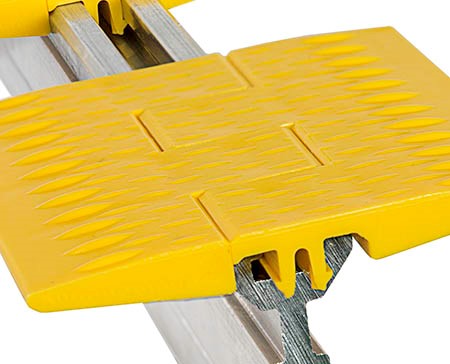

• Durable HDPE segments lock together and provide a low coefficient of friction so product slides easily across the transfer.
• Precision-molded segments ensure accurate fit of transfer in gap.
• Bright yellow color makes segments easy to monitor for replacement.
• The two-piece mounting bracket allows for easy mounting and removal.
• Compatible with both endless and mechanical belt splices.
• Ideal for package handling and airport applications.

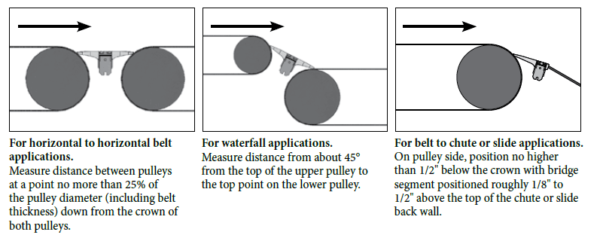

Segmented Transfer Plate Demonstration
