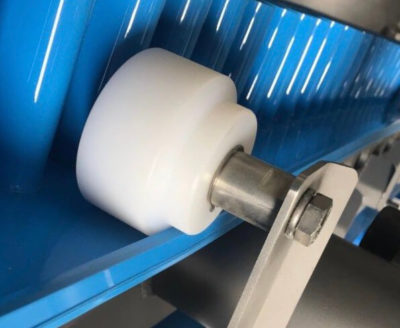

Sidewall Conveyor Belts

What do you need to know to get a sidewall conveyor belt quote?

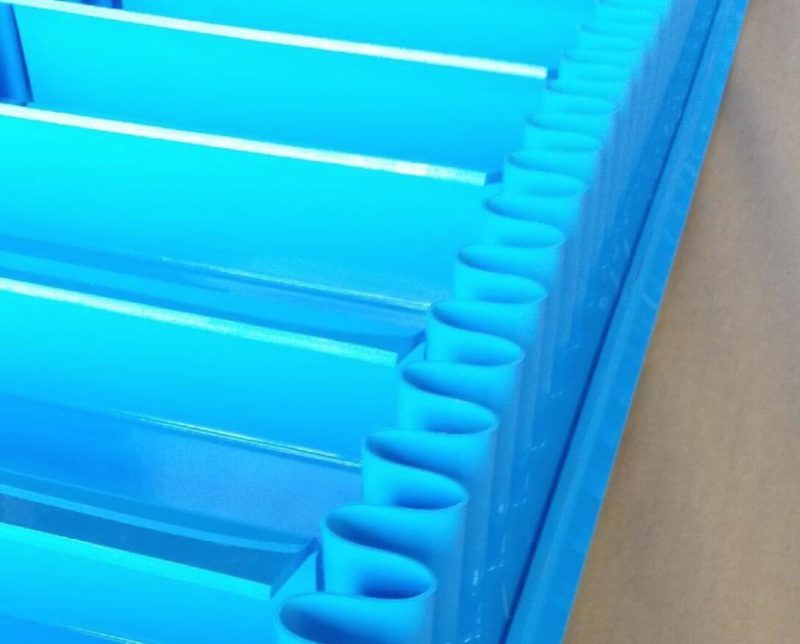

• Conveyor belt sidewall height

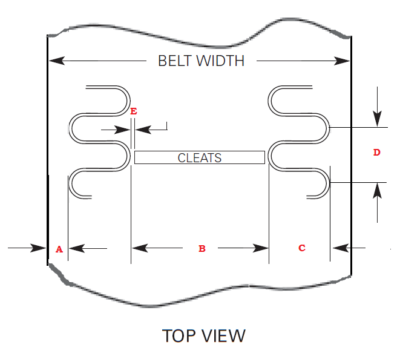

• “A” – Indent of sidewall: measured from outside edge of the belt to the outside edge of the sidewall.
• “B” – Conveying area: the distance between the insides of both sidewalls, measured from one inside edge to the other inside edge.
• “C” – Corrugation width: measured from the inside edge of the sidewall to the outside edge of the same sidewall.
• “D” – Corrugation pitch: the distance between the center of each sidewall, measured from the center of one corrugation to the center of the next corrugation.
• “E” – Cleat gap (optional: for applications that have cleats present on the belt): the distance between the cleat and the sidewall, measured from inside of the sidewall to the edge of the cleat.
